Steel-Line Roller Door Openers

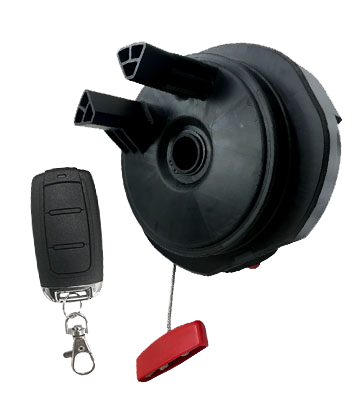

RD1200 Roller Door Opener

Designed especially for tight spots, this garage roller door operator only requires 90mm of side room for installation. Despite being compact in size it is packed full of features as well as being super quiet.

The RD1200 roller door opener is a super quiet, feature packed opener, suitable for new and existing roller doors. This powerful, yet energy efficient opener combines high quality materials with the latest technology bringing security and dependability.

Specifications:

• – 24V DC motor
• – Electrical Input: 240V
• – Max door curtain weight: 250kg
• – Max driving force: 1200N
• – Min side room of 90mm STD / 115mm WINDCLIP (edge curtain to wall)
• – 433.92MHz transmitter frequency
• – LED courtesy light
• – Rated Door area up to 25m² (18m² for wind locked doors)
• – Electronic limit system
• – Remote distance: Effective operating range of up to 35m.

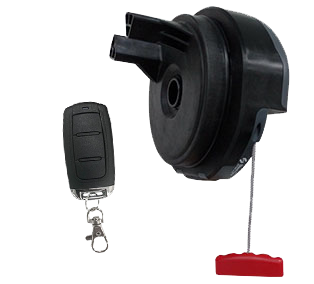

RD800 Roller Door Opener

Suitable for residential steel spring balanced roller doors. Max door height: 5.5m







Specifications:

• – 24V DC motor
• – Electrical Input: 240V
• – Max door curtain weight: 250kg
• – Max driving force: 1200N

• – Min side room of 90mm STD / 115mm WINDCLIP (edge curtain to wall)
• – 433.92MHz transmitter frequency
• – LED courtesy light
• – Rated Door area up to 25m² (18m² for wind locked doors)
• – Electronic limit system
• – Remote distance: Effective operating range of up to 35m.
